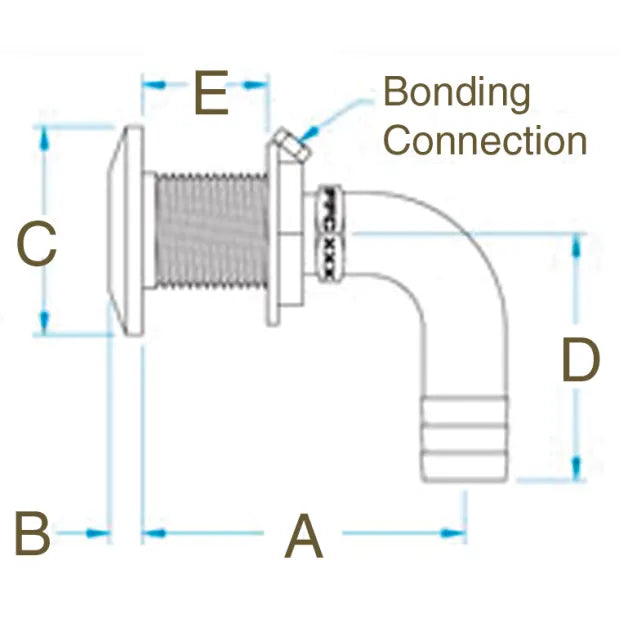

3/4 inch SS thru hull with bronze hose connection dimension diagram showing labeled measurements and bonding point.
3/4 inch SS thru hull with bronze hose connection angled view of stainless flange and curved barb fitting.
3/4 inch SS thru hull with bronze hose connection dimension diagram showing labeled measurements and bonding point.

3/4" SS Thru Hull with Bronze Hose Connection (O4704)

PART NUMBER: O4704

$39.99
$39.99

**Stainless steel thru-hull section has stainless steel locknut with integral bonding screw.

Maximum hull thickness is 1-1/4".**

****

**MFG #:** HTHC-750-S

**Size** 3/4" Hose ID

A = 2.71"

B = 0.3"

C = 1.90"

D = 2.25"

E = 1.25"

Hose ID = 3/4"

NPS Size = 3/4"

Tech Specs
  • Weight = 0.56 lbs
